Metal Spring Test Method Revealed?
As An Important Component Of Mechanical Parts, The Performance Of Spring Directly Affects The Operating Efficiency And Safety Of Equipment. Therefore, Testing The Metal Spring Is A Key Link To Ensure Its Quality And Performance.
The Following Is A Detailed Introduction To The Common Spring Test Methods And Their Principles:
————————

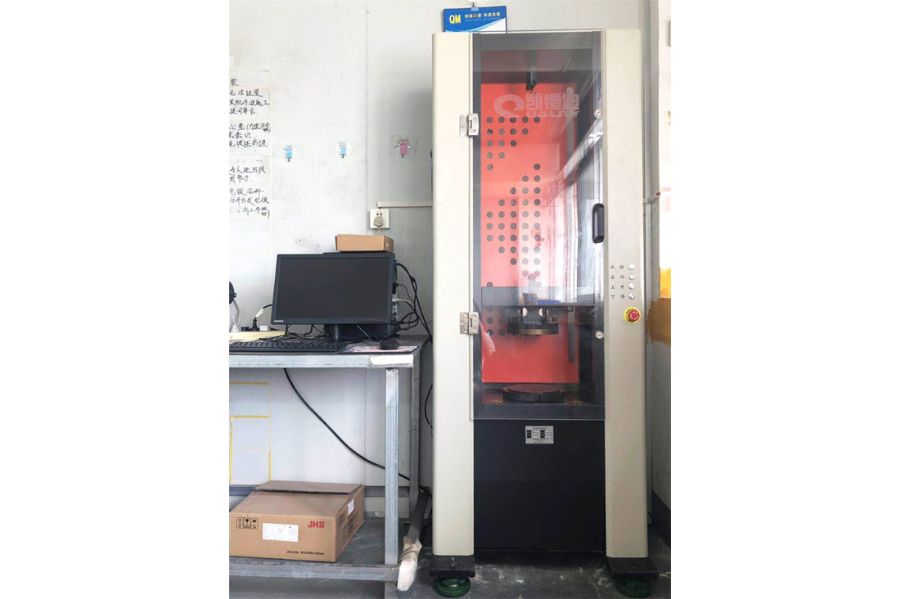

1. Spring Stiffness Test
• Definition: Measure The Amount Of Deformation Of A Spring Under A Unit Load To Evaluate The Stiffness Of The Spring.
• How:
• Secure The Spring To One End And Apply A Known Load To The Other End.
• Measure The Deformation Of The Spring Under Different Loads.
• Calculate The Spring Stiffness According To The Formula (K = F/X), Where (K) Is The Stiffness, (F) Is The Load, And (X) Is The Amount Of Deformation.
• Application: Widely Used In Compression Springs, Tensile Springs And Torsion Springs.
————————
2. Fatigue Life Test
• Definition: To Assess The Durability Of Springs Under Cyclic Loads And To Detect Whether They Will Fail During Prolonged Use.
• How:
• Apply A Periodic Load To The Spring On The Fatigue Test Machine.
• Record The Number Of Cycles The Spring Can Withstand Before Reaching The Failure State.
• Key Parameters:
• Load Size And Frequency.
• Environmental Conditions (E.G. Temperature, Humidity).
• Application: Automotive Suspension Springs, Springs In Industrial Equipment And Other Scenarios That Require Long-Term Stable Work.
————————
3. Free Height And Compression Limit Test
• Definition: Measures The Free Height Of The Spring Without Load And The Compression Limit Under Maximum Load.
• How:
• Use A Precision Measuring Tool Such As A Micrometer Or Height Gauge To Measure The Free Height Of The Spring.
• Apply The Maximum Design Load And Record The Compression Height Of The Spring.
• Purpose: To Ensure That The Spring Will Not Exceed The Design Range In Practical Applications, To Avoid Permanent Deformation Or Damage.
• Application: Suitable For All Kinds Of Compression Springs.
————————
4. Elastic Modulus Test
• Definition: Measures The Elastic Properties Of The Material, Reflecting The Rigidity And Resistance To Deformation Of The Spring Material.
• How:
• The Stress-Strain Curve Of The Material Is Determined By Tensile Or Compression Tests.
• Calculate The Elastic Modulus From The Slope Of The Curve.
• Significance: The Elastic Modulus Directly Affects The Design And Performance Of The Spring.
• Application: New Material Development And Quality Control.
————————
5. Resonance Frequency Test
• Definition: Measure The Natural Vibration Frequency Of A Spring System And Evaluate Its Dynamic Performance.
• How:
• Apply A Small Amplitude Excitation Signal To The Spring.
• Use Sensors To Record Vibration Responses And Analyze Resonant Frequencies.
• Application: Springs With High Dynamic Performance Requirements In Aerospace, Precision Instruments And Other Fields.
————————
6. Surface Quality Inspection
• Definition: Check The Surface Of The Spring For Cracks, Scratches Or Other Defects.
• How:
• Visual Examination Or Microscopic Observation.
• Application Of Non-Destructive Testing Technology (Such As Ultrasonic, Magnetic Particle Testing, Penetration Testing).
• Objective: To Ensure That The Spring Surface Is Free Of Defects And To Avoid Early Failure Due To Surface Problems.
• Applications: Springs With High Reliability Requirements (E.G. Medical Equipment, Aerospace Components).
• Definition: To Evaluate The Change In The Performance Of Spring Materials After Heat Treatment.
• How:
• Test The Hardness, Strength And Toughness Of Spring Before And After Heat Treatment.
• Check Whether The Heat Treatment Causes Changes In The Internal Structure Of The Material.
• Application: Springs Used In High Temperature Environments (Such As Engine Valve Springs).
• Definition: To Evaluate The Corrosion Resistance Of A Spring In A Specific Environment.
• How:
• Place The Spring In A Salt Spray Test Chamber To Simulate A High Humidity And Salt Environment.
• Observe Corrosion On The Surface Of The Spring.
• Application: Marine Environment, Chemical Industry And Other Corrosive Application Scenarios.
• Definition: Simulate The Working State Of The Spring Under Actual Conditions To Evaluate Its Dynamic Performance.
• How:
• Apply A Dynamic Load To The Spring On The Bench.
• Record The Response Characteristics Of The Spring (E.G. Displacement, Stress Change).
• Application: Springs Used In Dynamic Load Environments Such As Automotive Suspension Systems And Shock Absorbers.
————————
Sum Up
The Metal Spring Test Method Covers Many Aspects From Static Performance To Dynamic Characteristics, And Each Test Method Has Its Specific Application Scenario And Technical Requirements.
Thorough Testing Of The Spring Ensures That It Meets The Design Requirements And Performs Optimally In Practical Applications.
In The Future, With The Development Of New Materials And New Technologies, Spring Testing Methods Will Also Be Continuously Optimized And Innovative To Adapt To Higher Performance Requirements And More Complex Use Environments.
